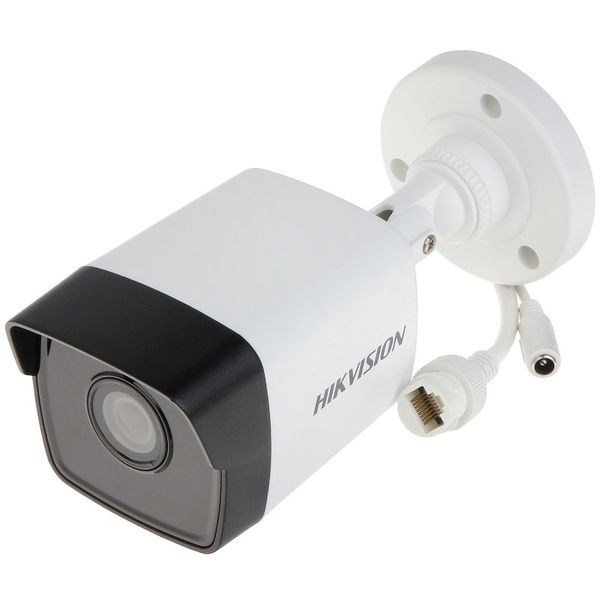

Camera IP hồng ngoại 2MP HIKVISION DS-2CD2021-IAX chuẩn nén H.265+

Camera IP hồng ngoại 2MP HIKVISION DS-2CD2021-IAX chuẩn nén H.265+

Camera IP hồng ngoại 2MP HIKVISION DS-2CD2021-IAX chuẩn nén H.265+

Mã sản phẩm: Camera IP hồng ngoại 2MP HIKVISION DS-2CD2021-IAX Giá bán: 2,190,000 đBảo hành: 24 thángMô tả:

Thêm vào giỏ hàng

  • Thông tin chi tiết
  • Cùng nhà sản xuất

Camera IP hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2021-IAX

- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.

- Chuẩn nén hình ảnh: H.265+.

- Độ phân giải: 2.0 Megapixel.

- Ống kính: 4 mm (tùy chọn 6 mm).

- Tầm quan sát hồng ngoại: 30 mét.

- Tính năng cắt lọc hồng ngoại thông minh ICR, 0.01 Lux@(F1.2, AGC ON).

- Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).

- Chức năng chống ngược sáng Digital WDR (Wide Dynamic Range).

- Chức năng cấp nguồn qua mạng PoE.

- Tiêu chuẩn chống nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Nguồn điện: 12 VDC ± 25%, PoE (802.3af).

- Kích thước: 216 × 121 × 118 mm.

- Trọng lượng: 280 g.



Đặc tính kỹ thuật

Model DS-2CD2021-IAX
Camera
Image Sensor 1/2.8 inch Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR DWDR
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 4/6 mm
Aperture F2.0
Focus Manual
FOV 2.8 mm: horizontal FOV: 103°, vertical FOV: 59°, diagonal FOV: 118°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.264+ Main stream and sub-stream support
H.265 Type Main Profile
H.265+ Main stream and sub-stream support
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 1920 × 1080
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC/3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night Switch Auto/Schedule
Network
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Protection Level IP67
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic
Dimensions Camera: Ø 70 × 172.7mm
With package: 216 × 121 × 118 mm
Weight Camera: Approx. 280 g
With package: Approx. 530 g


- Bảo hành: 24 tháng.
